Hobie Lynx Gudgeon with Universal Versa Rudder™ Adapter and Pole Steering

Hobie Lynx Gudgeon with Universal Versa Rudder™ Adapter and Pole Steering

$284.00
$284.00
Shipping calculated at checkout.
25% off all Bixpy adapters. 50% off with the purchase of a kit. Promotion automatically applied at checkout.

SKU: AC-HGU-2402

Product Details

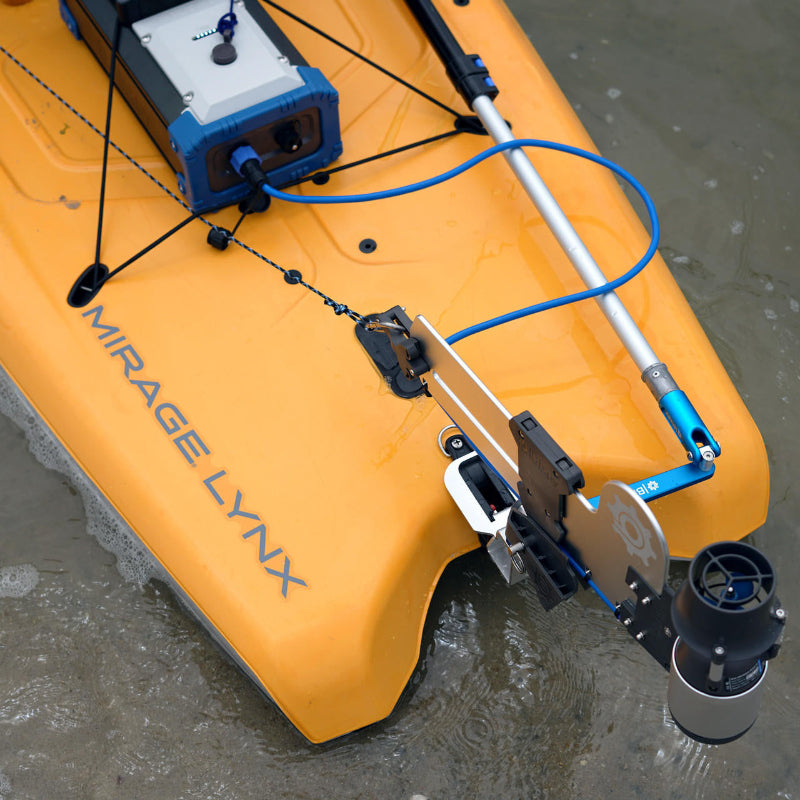

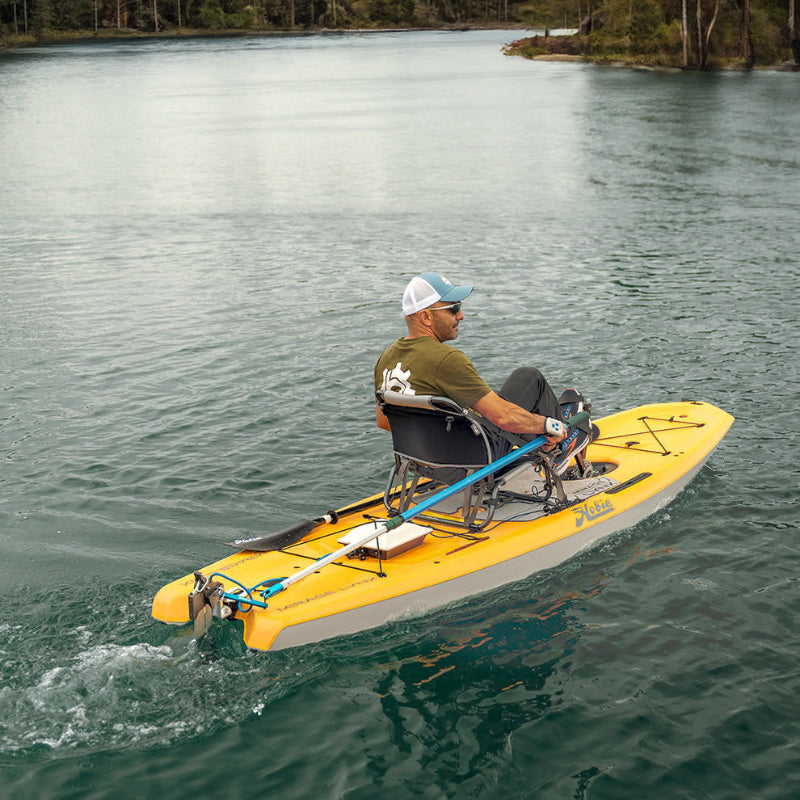

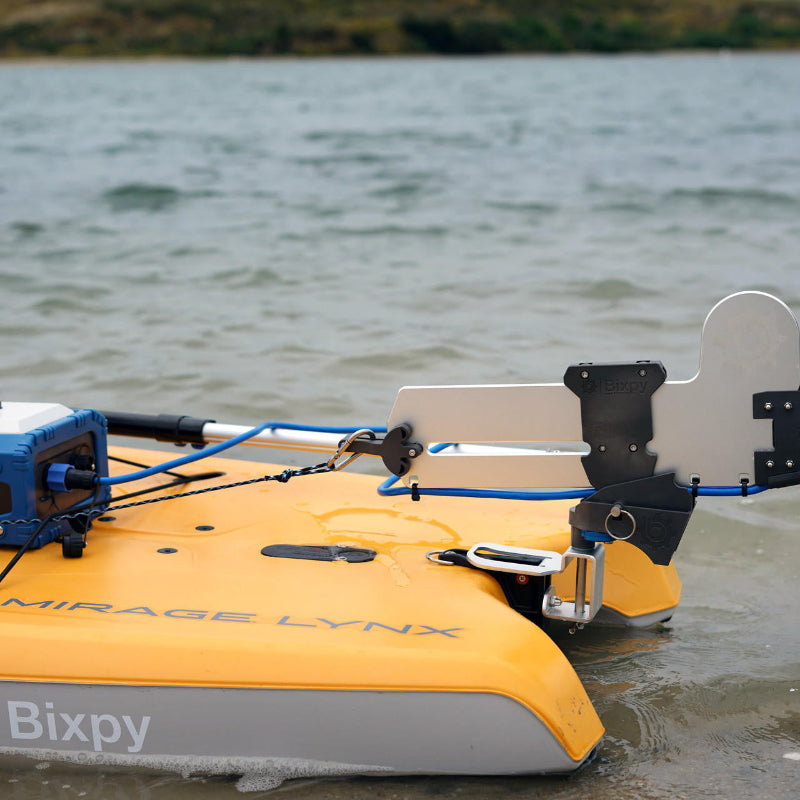

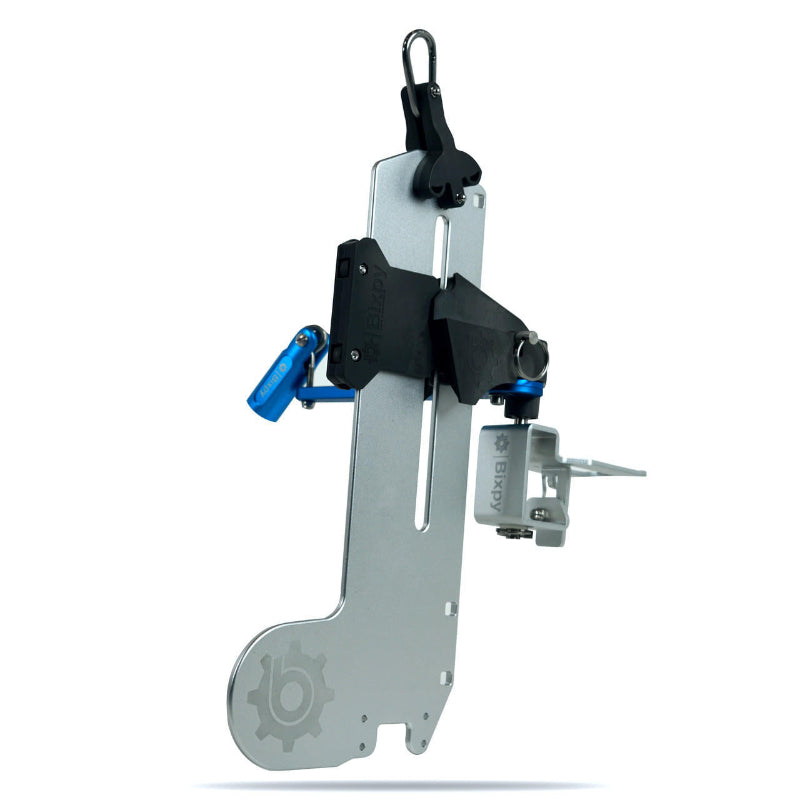

You can now motorize your Hobie Lynx Kayak in seconds by attaching our Universal Versa Rudder to the new Hobie Lynx Gudgeon, and also utilize pole steering. This kit includes everything you need: Universal Versa rudder, Hobie Lynx gudgeon, pole steering, and telescopic handle.

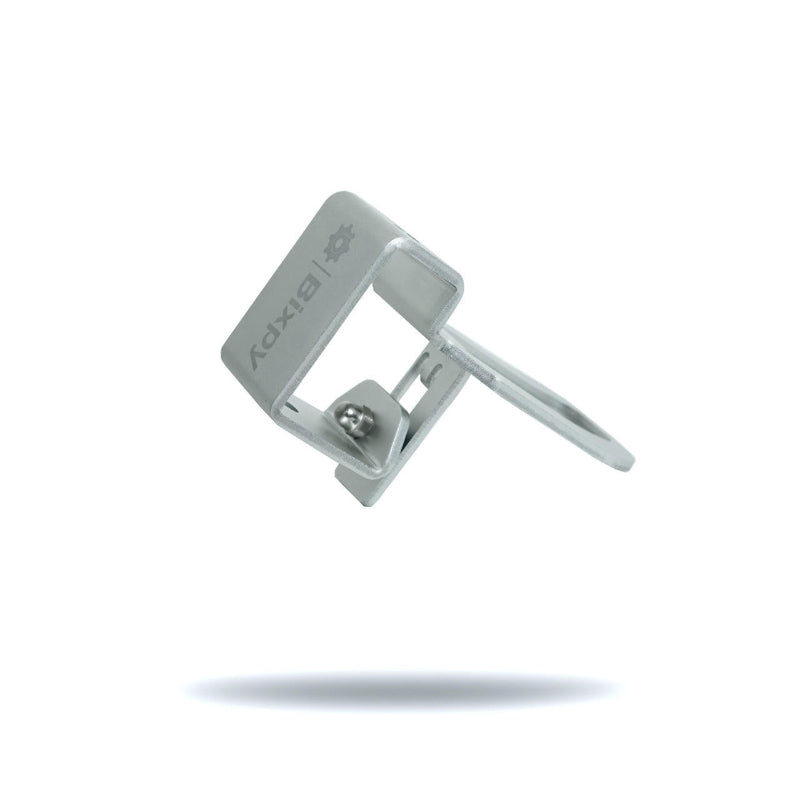

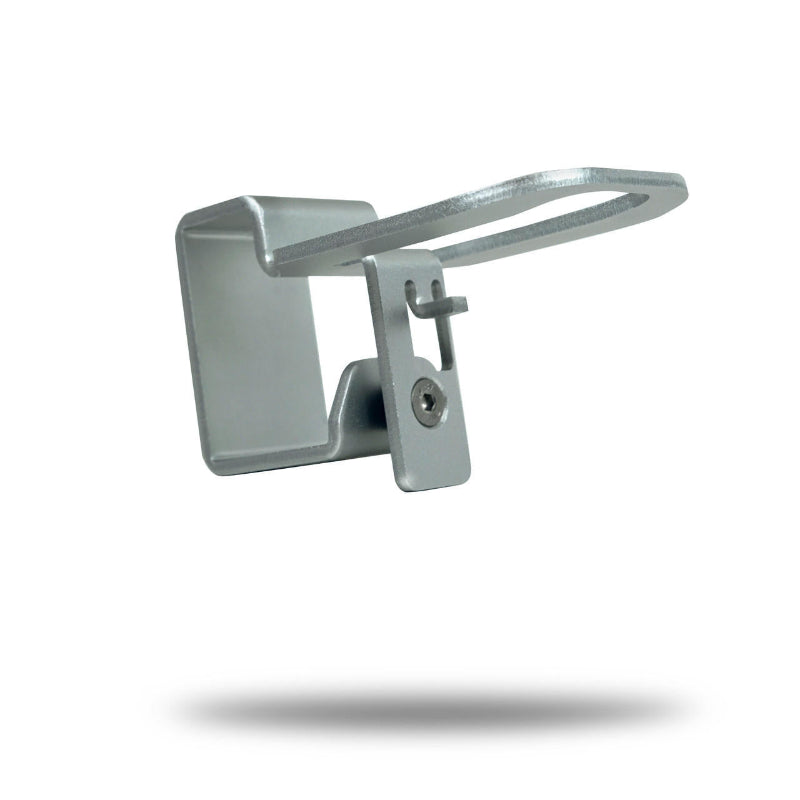

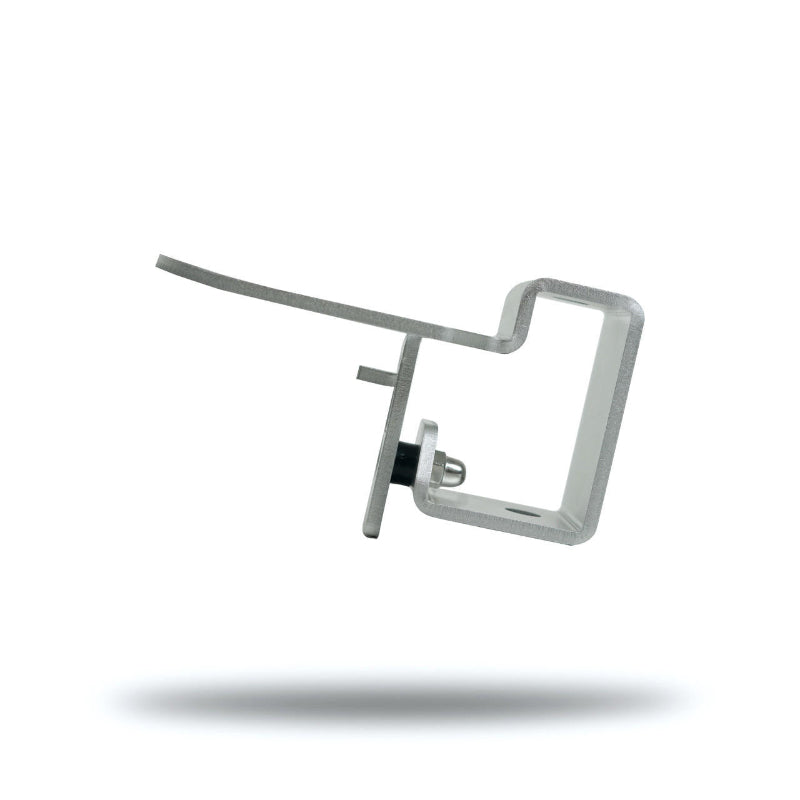

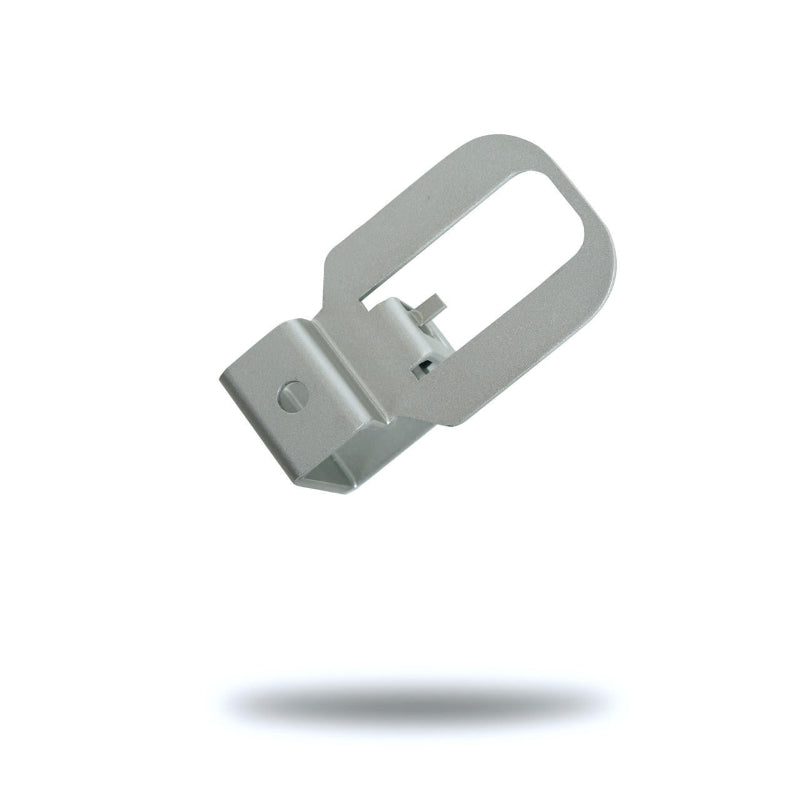

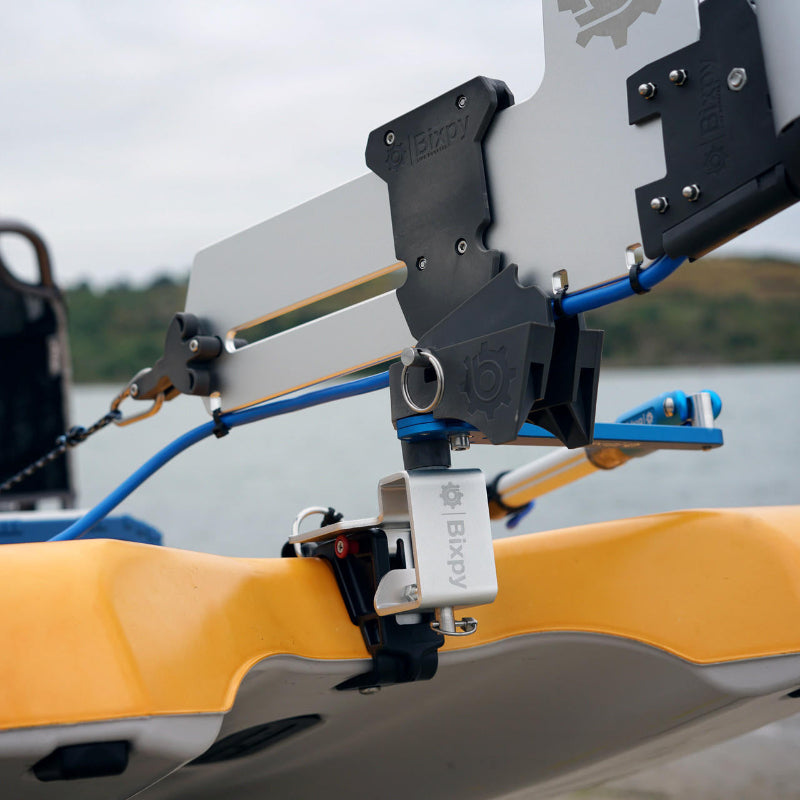

The Hobie Lynx Gudgeon is designed specifically for the Hobie Lynx rudder bracket, allowing easy replacement of your kayak's rudder with the Bixpy Versa Rudder and K-1 motor. Installation is simple with no modifications, drilling, glues, or epoxies needed—just plug and play. For easy steering, the Versa Rudder comes with a pole steering option*. This option installs quickly and provides excellent leverage.

Compatible with all Bixpy motors (J-1, J-2, K-1), the Versa Rudder can motorize Hobie Lynx kayaks.

What's in the box
  • Hobie Lynx Gudgeon.
  • Bixpy Versa Rudder™.
  • Bixpy Clam Cleat.
  • Pull up rope.
  • Pole Steering.
  • Bixpy Vinyl Decal.
  • Bixpy Telescopic Handle

Features
  • Mounts into any standard rudder 10mm pin hole.
  • Gravity deployment system.
  • 90° quick Slide & Stow feature.
  • "Lock-down" mechanism for using the rudder in reverse speeds.
  • Kick up feature for shallow water and hazards.
  • Removable cap for mounting the Bixpy Jet Motor.
  • To work effectively, the Bixpy motor needs to be about 2" to 3" below the waterline.



Specs
  • 18" x 4" (457.2 mm x 101.6 mm) rudder blade.
  • The distance from the top of the pin to the top of the motor is 12.25" (305 mm).
  • Pin length is 3.35" (85 mm). The gap from the pin to the blade is 1.5" (38 mm).

Warranty
1 year warranty from the date of purchase from Bixpy.com or an authorized dealer.

User Manuals & Downloads

Hobie Lynx Gudgeon with Universal Versa Rudder™ Adapter and Pole Steering Installation.

Good to Know
  • Note: Operating the motor on inflatable kayaks at high speeds may cause hull damage over time.
  • Please note that V-arm Steering is not compatible with this setup.
