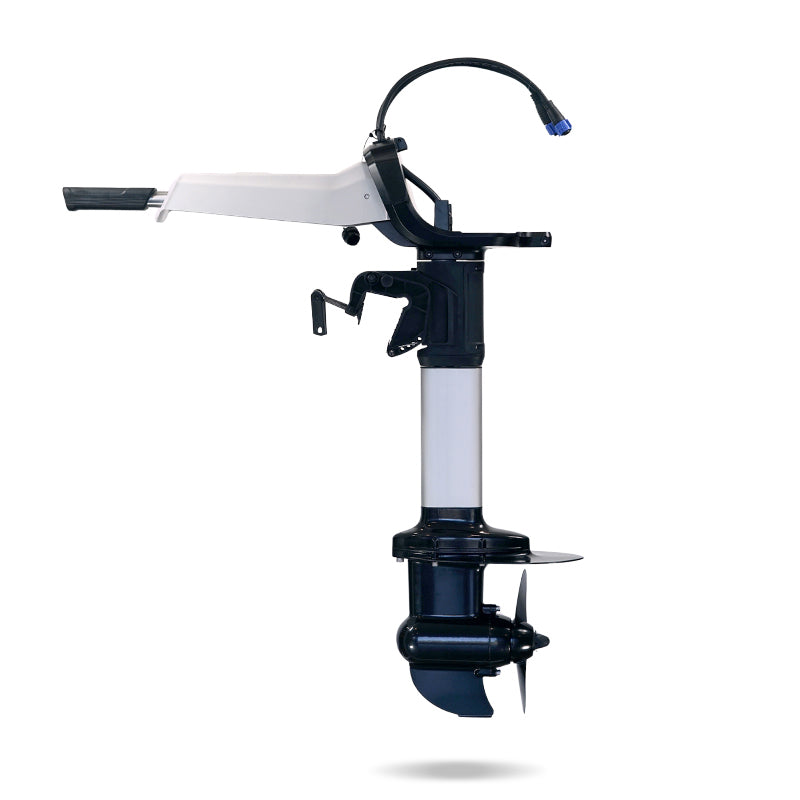

• White and black Bixpy motor assembly with a silver shaft and propeller, on a white background.
  • Bixpy electric outboard motor mounted on the stern of a blue inflatable dinghy, resting on land near water.

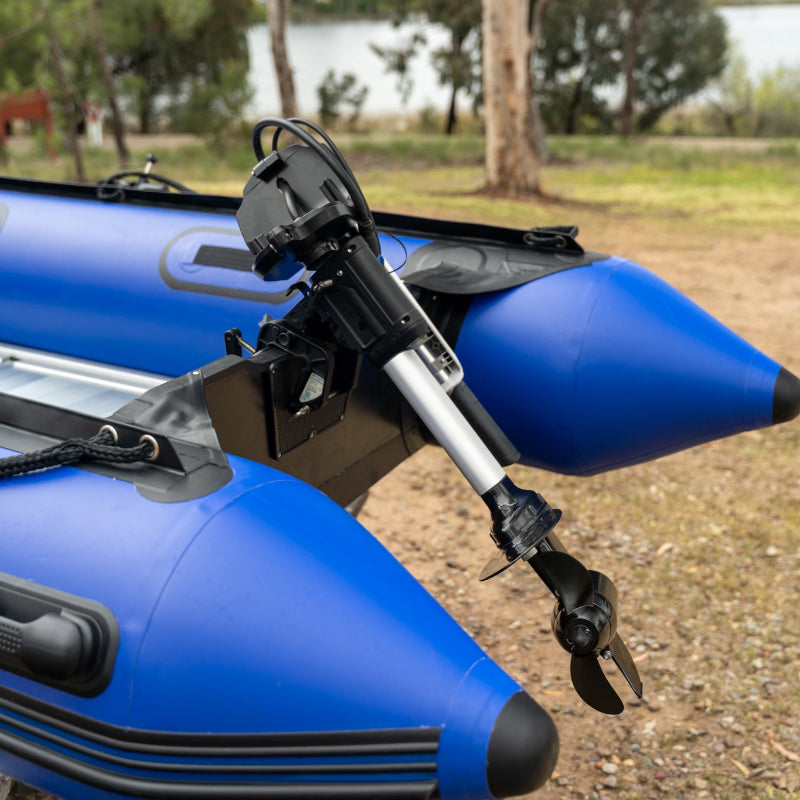

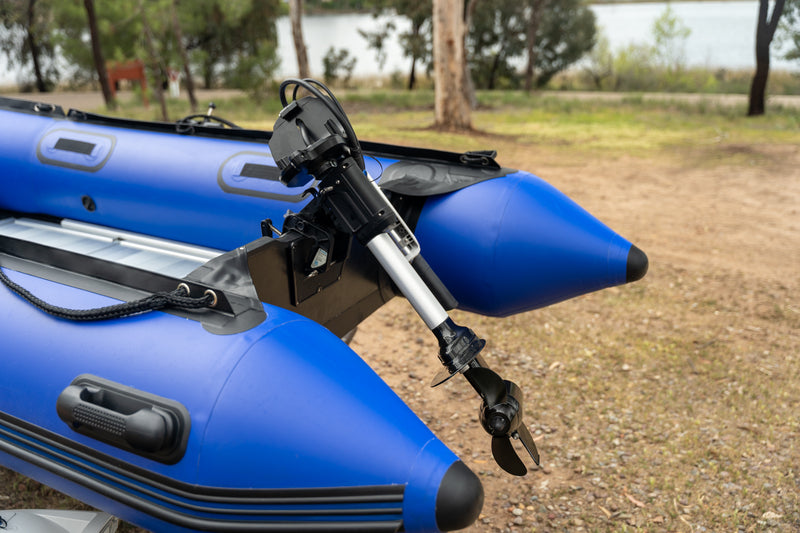

  • Bixpy motor assembly mounted on the stern of a blue inflatable boat, resting on land with trees in the background.

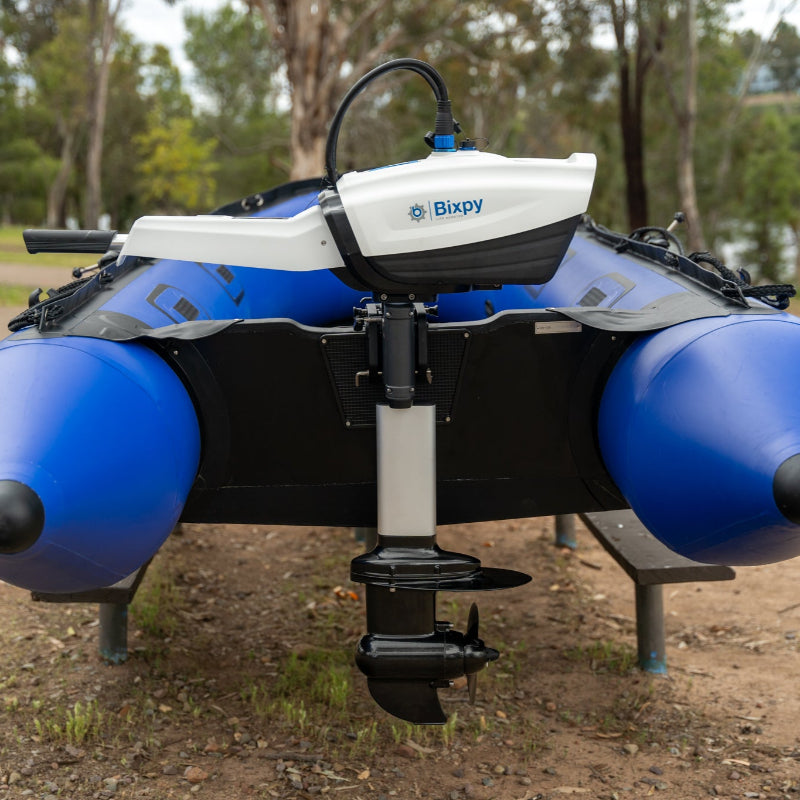

  • White Bixpy electric outboard motor with silver shaft and propeller mounted on the stern of a blue and black inflatable boat on land.

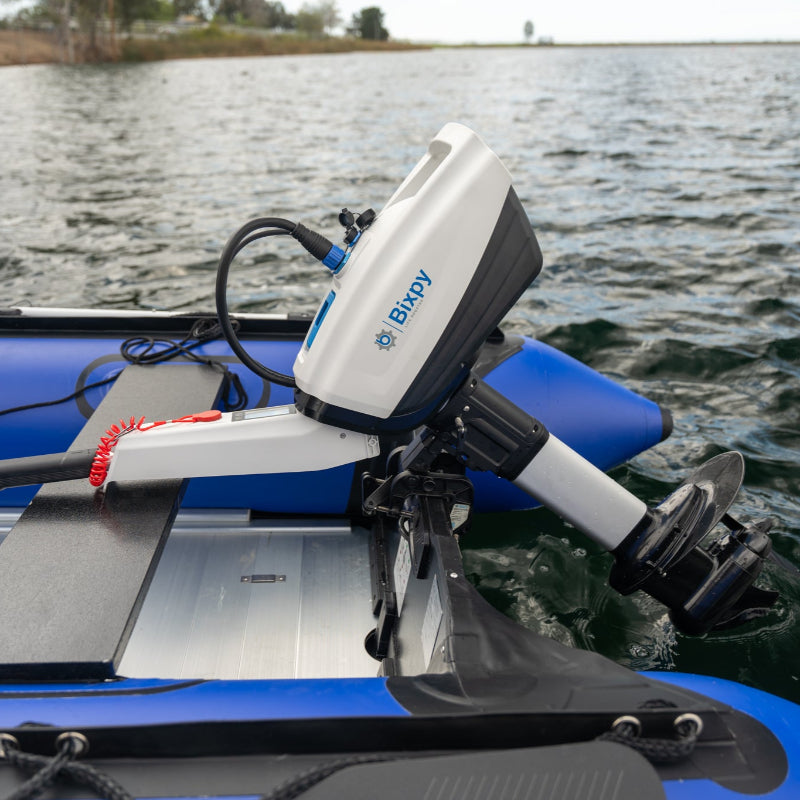

  • White Bixpy electric outboard motor with tiller handle mounted on a blue inflatable boat, propelling through rippled water.

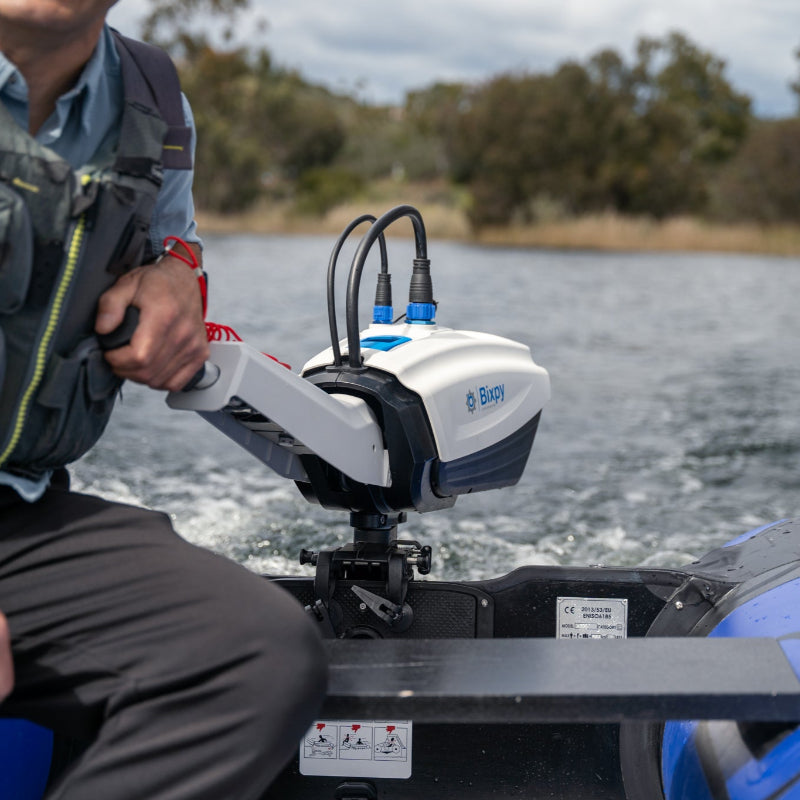

  • Close-up of a white Bixpy electric outboard motor mounted on an inflatable boat, showing cables connected and a person's hand on the tiller handle as it propels through water.
1 6

N-3 Motor Assembly

N-3 Motor Assembly

MT-NMB-3801

$1,649.00
$1,649.00
Sale Sold out
Shipping calculated at checkout.
Choose Your Shaft Length

The Bixpy N-3 Motor Assembly is the core propulsion unit of the Bixpy N-3 Outboard Motor, delivering 3HP-equivalent performance with a high-efficiency electric brushless motor. This direct-drive motor is maintenance-free, ultra-quiet, and purpose-built for powering Jon boats, dinghies, inflatables, tenders, and small sailboats. With IP67 waterproofing, a rugged build, and stepless throttle compatibility, it's ideal for clean, gas-free adventures.
Battery not included—requires the NB-1440 Power Pack for operation.

View full details

Important Fitment Note

Features

  • 3HP equivalent direct-drive brushless motor
  • Quiet, maintenance-free operation
  • IP67 waterproof and corrosion-resistant design
  • Smooth, stepless throttle response
  • Ideal for jon boats, dinghies, tenders, inflatables, and sailboats
  • Designed for use with the NB-1440 Battery Pack
  • Rugged marine-grade construction

Includes

Specifications

  • Motor Type: PMSM brushless DC
  • Power: 1.2kW (3HP equivalent)
  • Propeller: 2-blade aluminum, 9.25" diameter
  • Shaft Options: Short (22.5") or Long (27.3")
  • Propeller Speed: 1750 RPM
  • Waterproof Rating: IP67
  • Weight (motor only): ~25 lbs
  • Compatibility: Bixpy NB-1440 Power Pack (battery not included)

User Manuals & Downloads

GOOD TO KNOW

Warranty

1 year warranty from the date of purchase from Bixpy.com or a Bixpy authorized dealer.
