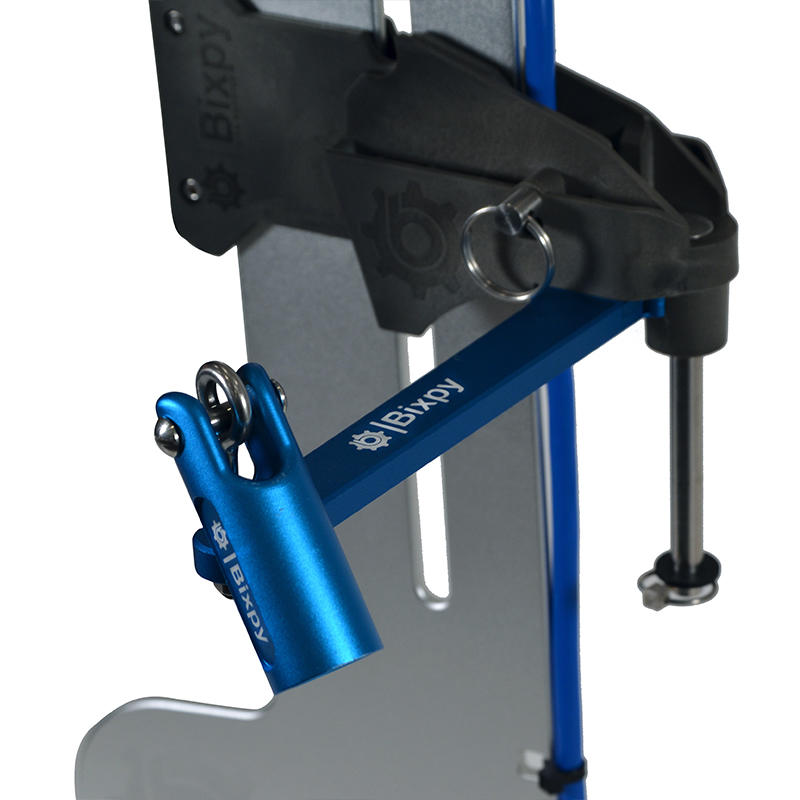

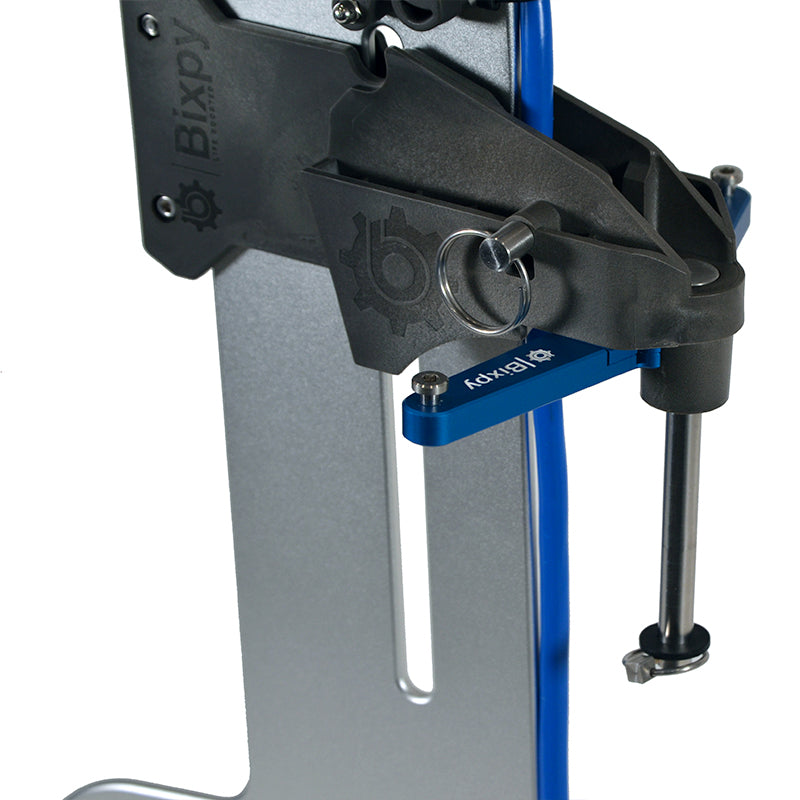

• Close-up of the upper section of a Bixpy rudder adapter, showing its black clamping mechanism, blue adjustment lever with ring, and connection to a blue vertical shaft.
  • Long gray Bixpy rudder mounting adapter with black clamp and blue adjustment ring, designed for vertical installation of a motor on watercraft.

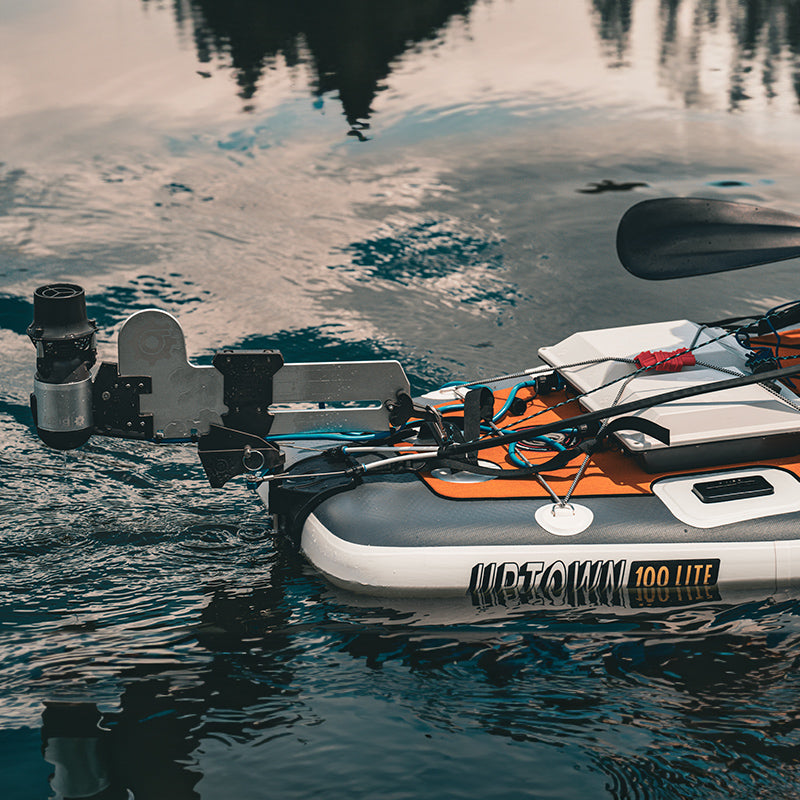

  • Bixpy Jet electric motor mounted to an inflatable gray and orange Uptown 100 Lite kayak via an integrated rudder mount, in calm water.
  • Man in Bixpy shirt preparing a tan kayak and a blue SHAD 10'4" kayak, both equipped with Bixpy Jet electric motors and mounts, on yellow stands near water.

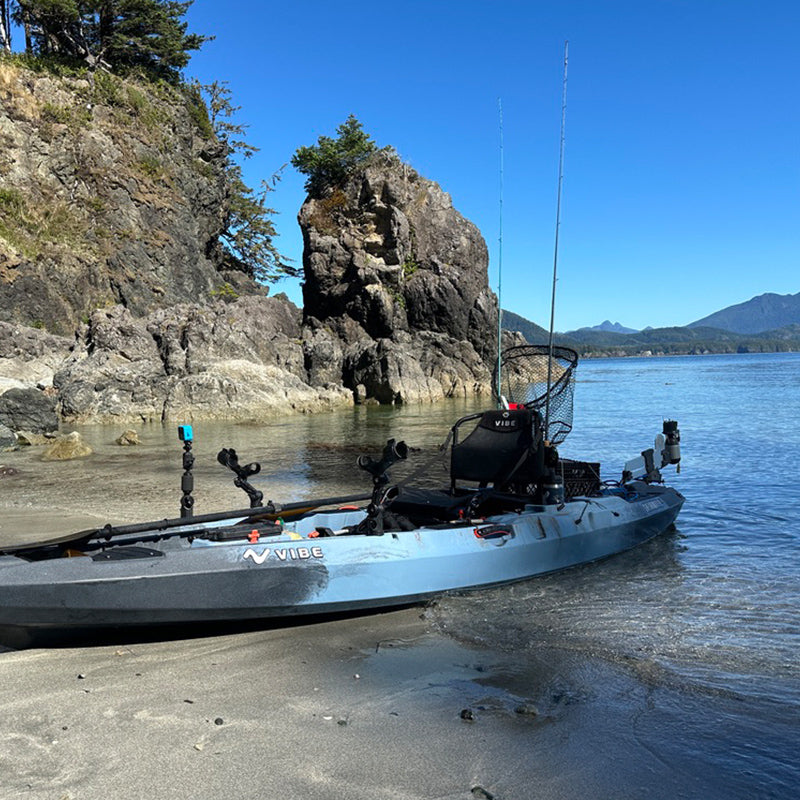

  • Blue and gray Vibe fishing kayak with a Bixpy electric motor and multiple fishing rods, beached on a sandy shore next to clear water with rocky cliffs and mountains.

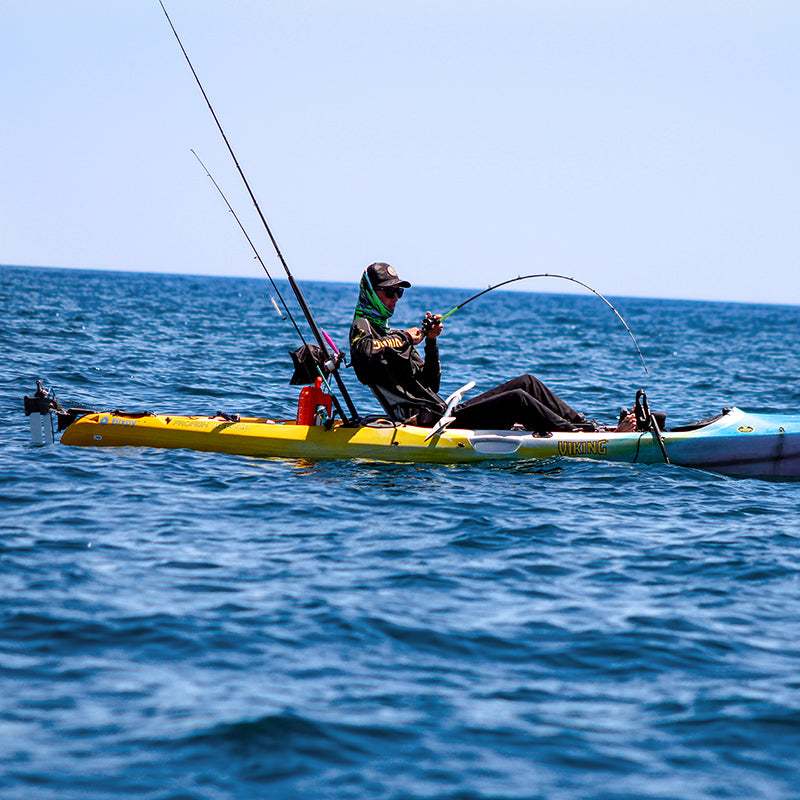

  • Angler in a yellow and blue Viking fishing kayak with a Bixpy electric motor, reeling in a catch on open water under a clear sky.
  • Bixpy Jet electric motor mounted to a light gray rudder adapter on a teal boat.
  • Man kneeling on grass adjusting a Bixpy Jet electric motor mounted on a light gray rudder adapter at the stern of a blue Tempest 12'0 kayak on a sandy beach.
  • Person in a kayak propelled by a Bixpy Jet electric motor, fishing on calm water with houses and a bridge in the distance.
  • Stern view of a light green kayak with a Bixpy Jet electric motor mounted on a rudder adapter, above rippled water.
  • Bixpy Jet electric motor mounted on a light gray rudder adapter with a blue vertical shaft and black clamping mechanisms, on a white background.
  • Labeled diagram of a Bixpy rudder mounting adapter, highlighting features like anodized aluminum body, glass-filled nylon, quick release pin, and a tail for turning.
  • Close-up, bottom view of a Bixpy Jet electric motor connected to the lower section of a gray rudder adapter, showing mounting details.
  • Video showcasing the Bixpy Universal Versa Rudder Adapter, detailing its features, steering options, and installation process on kayaks.
1 14

Universal Versa Rudder™

Universal Versa Rudder™

AC-RUD-2301

$199.00
$199.00
Sale Sold out
Shipping calculated at checkout.
Choose Your Steering Option
Need a Gudgeon?

Bixpy Versa Rudder™ with Steering is the first rudder on the market specifically designed to be motor-compatible. The rudder is made from anodized aluminum and glass-filled nylon, and is ready to take on any adventure, whether in saltwater or fresh. The Versa Rudder also offers a tail for improved turning, wheels to assist with raising and lowering the rudder, a quick-release pin, and two steering options (Pole Steering/V-Arm Steering).

The Versa Rudder™ is incredibly easy to install, thanks to its molded 10mm stainless steel pin. You can swap out most other rudders in seconds! Additionally, its sturdy, double-hinged 90° Slide & Stow mechanism allows you to quickly pull the rudder completely out of the water.

The Versa Rudder™ also features a gravity-driven locking mechanism that allows the rudder to lock into place when motorized in forward or reverse. Steering our rudder can be done by using the existing rudder steering lines on your watercraft with our included V-ARM™ Steering Bracket. If you do not have existing steering lines on your kayak, you can use our Pole Steering to steer the rudder instead of the V-ARM™ Steering Bracket. Please ensure you select the appropriate steering option for your watercraft. Bixpy Telescopic Steering Handle is included with the Pole Steering option.

View full details

Important Fitment Note

Features

  • Mounts into any standard rudder 10mm pin hole.
  • Gravity deployment system.
  • 90° quick Slide & Stow feature.
  • "Lock-down" mechanism for using the rudder in reverse speeds.
  • Kick up feature for shallow water and hazards.
  • To work effectively, the Bixpy motor needs to be about 2" to 3" below the waterline.

Includes

  • Bixpy Versa Rudder™.
  • Bixpy Clam Cleat.
  • Pull up rope.
  • Steering System of your choice.
  • Pole Steering option includes a Telescopic Steering Handle.

Specifications

  • Rudder Blade: 18" x 4" (457.2 mm x 101.6mm).
  • The distance from the top of the pin to the top of the motor is 12.25"(311.15 mm).
  • Pin length is 3.35" (85 mm). The gap from the pin to the blade is 1.5" (38 mm).

User Manuals & Downloads

GOOD TO KNOW

  • Make sure that you are getting the right Bixpy adapter for your watercraft on www.bixpy.info
  • Motors shown in the above pictures are not included in the adapter kit.

Warranty

1 year warranty from the date of purchase from Bixpy.com or an authorized dealer.
