Bixpy Versa Rudder™ With Steering (K-1 & J-2 Motors)

Universal Versa Rudder™ With Steering

SKU:
AC-RUD-2301
|
UPC:
858457007895
$179.00

Free at checkout with the purchase of a K-1 Outboard Kit or an Angler Pro Kit

Current Stock:
Adding to cart… The item has been added
Description

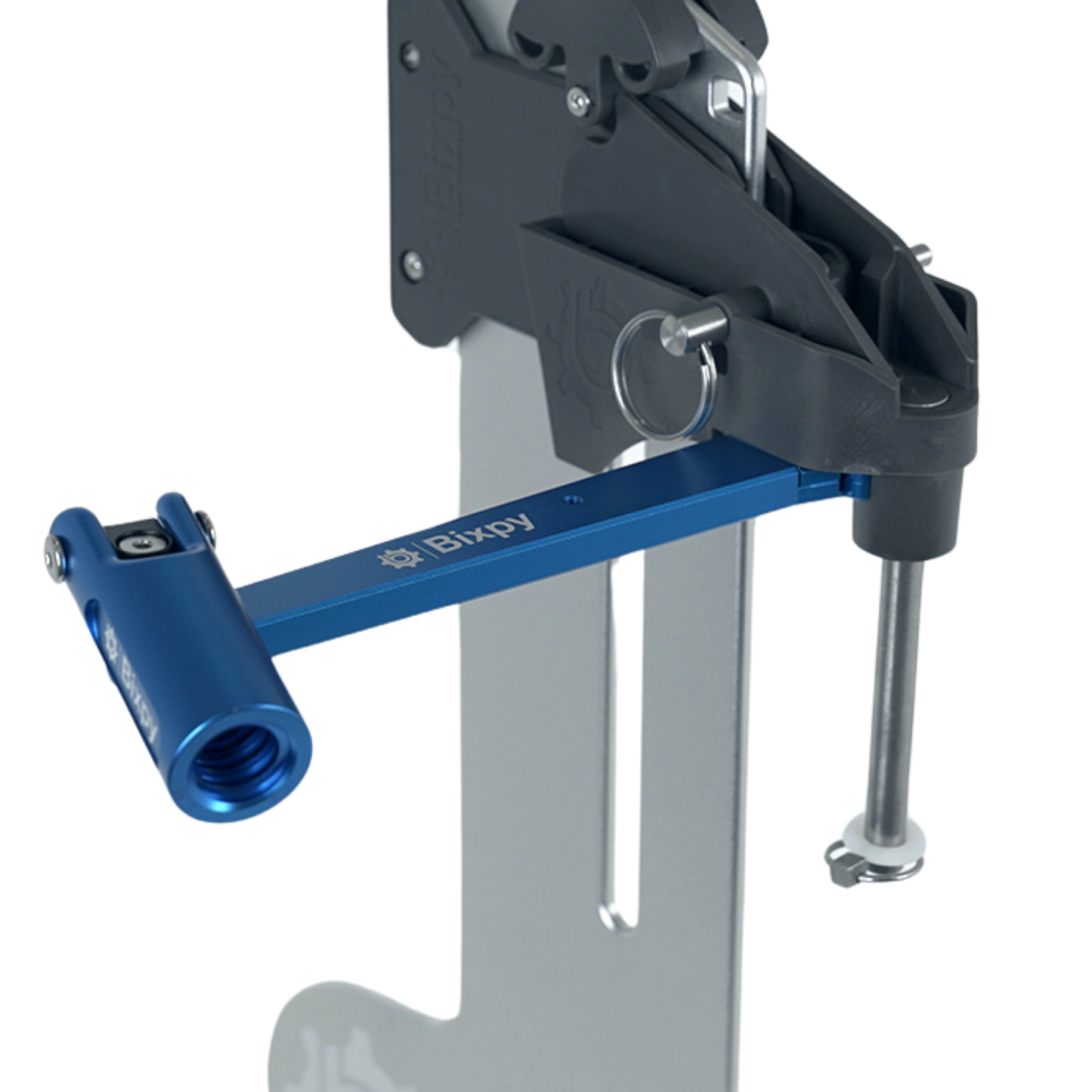

Bixpy Versa Rudder™ With Steering is the first rudder in the market specifically designed to accept a motor as an option. The rudder is made from anodized aluminum and glass-filled nylon and ready to take on any adventure, saltwater or fresh! The Versa Rudder™ also offers a tail for better turning, wheels to assist raising/lowering the rudder, a quick-release pin, and two steering options(Pole Steering/ V-Arm™ Steering)!

The Versa Rudder™ offers a molded 10mm stainless steel pin that offers easy installation and can replace most other manufacturer rudders in seconds! It also offers a robust double hinged, 90° Slide & Stow mechanism that gets the rudder completely out of the water in a heartbeat!

The Versa Rudder™ also features a gravity driven locking mechanism that allows the rudder to lock into place when motorized in forward or reverse. Steering our rudder can be done by using the existing rudder steering lines on your watercraft with our included V-ARM™ Steering Bracket. If you do not have existing steering lines on your kayak, you can use our Pole Steering to steer the rudder instead of the V-ARM™ Steering Bracket. Please make sure you choose the appropriate steering option for your watercraft.

Make sure that you are getting the right Bixpy adapter for your watercraft on www.bixpy.info

*Motors shown in the above pictures are not included in the adapter kit.

Bixpy Telescopic Handle is included with the pole steering option.

FEATURES & SPECIFICATIONS

  • Mounts into any standard rudder 10mm pin hole
  • Gravity deployment system
  • 90° quick Slide & Stow feature
  • "Lock-down" mechanism for using the rudder in reverse speeds
  • 18in. x 4in. rudder blade
  • Kick up feature for shallow water and hazards
  • Removable cap for mounting Bixpy Jet Motor
  • The top of the pin to the top of the motor measures 12.25 inches or 305 mm.
  • Pin length is 85 mm. Gap from pin to blade is 38 mm.
  • To work effectively, the Bixpy motor needs to be about 2" to 3" below waterline.

INCLUDES

  • Bixpy Versa Rudder™
  • Bixpy Clam Cleat
  • Pull up rope
  • Steering System of your choosing

INSTALLATION GUIDES

Versa™ Rudder installation guides and videos.

Video Gallery

Warranty
1 year warranty from date of purchase from Bixpy.com or an authorized dealer
Additional Information
Feedonomics:
Yes
Marketplace Title:
Bixpy Versa Rudder™ Adapter - Quick Connect, Steering Options, Mounting Adapter for Bixpy K-1 or J-2 Electric Marine Trolling Motor, Motorize kayaks, Inflatable Watercraft
Ebay:
Bixpy Versa Rudder™ Adapter (K-1 & J-2 Motors)
Installation Difficulty:
Easy to Intermediate
Steering Options:
V-Arm Steering and Pole Steering
Installation Videos/Instructions:
https://youtu.be/DBixpamdY8M
Additional helpful hardware:
You will need a Bixpy Gudgeon if your watercraft does not have a 10mm rudder hole in the stern
Good to know:
The Versa Rudder™ offers a robust double hinged, 90° Slide & Stow mechanism that allows you to raise/lower the rudder completely in/out of the water
