Universal Versa Rudder Adapter Bundle

Universal Versa Rudder Adapter Bundle

SKU:CK-RUD-2402

Regular price $1,547.00
Regular price Sale price $1,547.00
Sale Sold out
Shipping calculated at checkout.
Steering
Need a Gudgeon?
Add Your Motor & Battery Kit

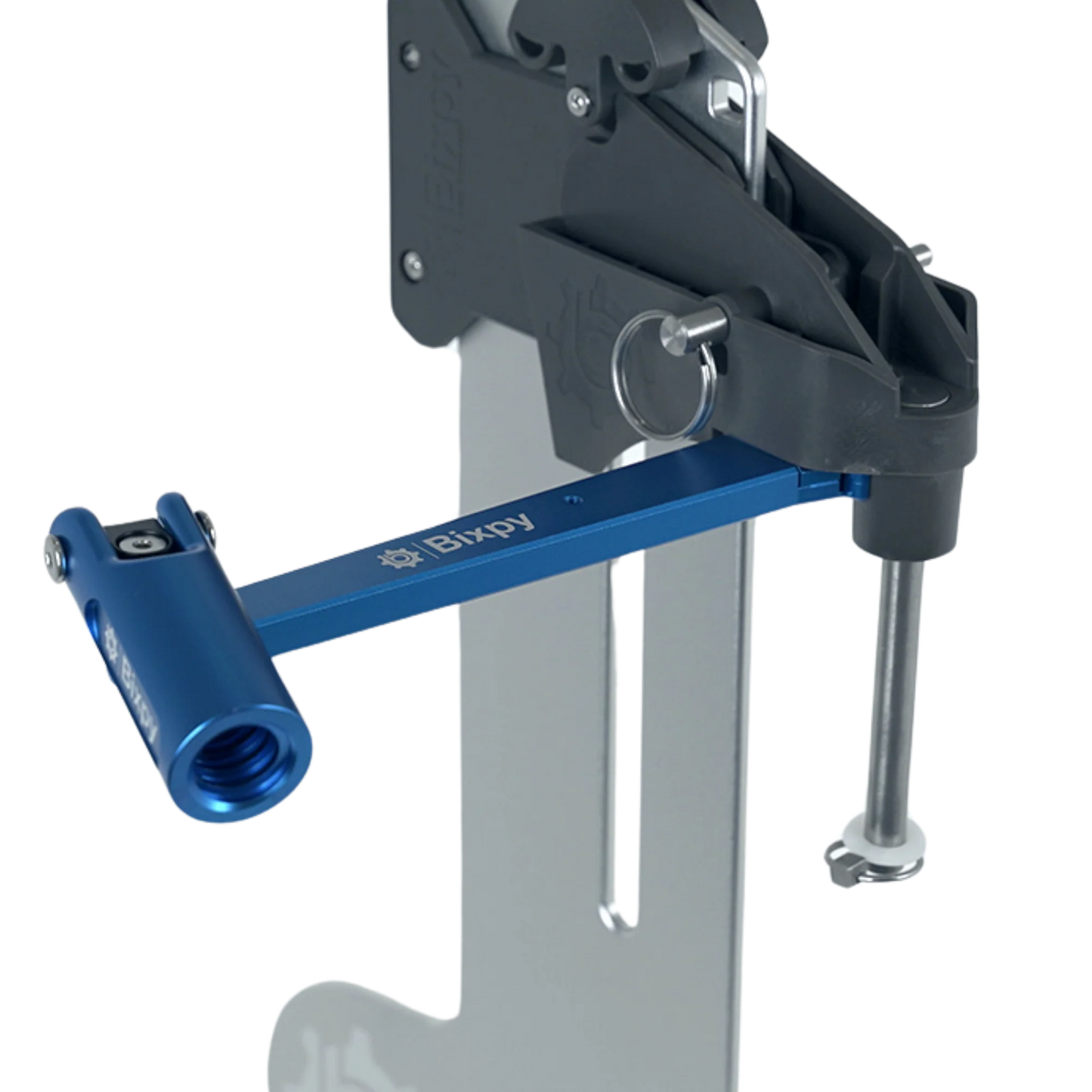

Universal Versa Rudder Adapter Bundle includes the mounting adapter and everything else needed for motorizing most kayaks that come with a rudder from the manufacturer!

This adapter offers a robust, double-hinged, 90° Slide & Stow mechanism that gets the rudder completely out of the water in a heartbeat! This rudder also features a gravity driven locking mechanism that allows the rudder to lock into place when motorized in forward or reverse. However, since the locking only occurs with gravity, the rudder "unlocks' and pops up to protect your motor and rudder in shallow water. Steering our rudder can be done by using the existing rudder steering lines on your watercraft with our included V-ARM™ Steering Bracket. If you do not have existing steering lines on your kayak, you can use our Pole Steering to steer the rudder instead of the V-ARM™ Steering Bracket. Please make sure you choose the appropriate steering option and Motor & Battery Kit for your watercraft.

The Bixpy K-1 Outboard Kit is Bixpy's third major iteration of its, now famous, jet propulsion system that has motorized thousands of kayaks, paddle boards, dinghies, float-tubes and all kinds of personal water craft over the last 5 years.

The K-1 Outboard Kit combines the awesome power of the Bixpy K-1 Motor, with 33lb of thrust, and the finely tuned, waterproof, wireless PP-378 Outboard Battery (Version 4) to power virtually any personal watercraft on the market.

The K-1 Motor is roughly 20% shorter in length than its predecessor, the J-2 Motor, yet offers the same massive output the J-2 motors provided in a quieter, more sleek, and more rugged aluminum housing.

Whether you want to motorize your kayak, canoe, paddle board, float tube, dinghy, inflatable pack-raft, or any number of other small watercraft, the Bixpy Outboard Kit is your answer.

There is nothing else on the market made specifically to give water enthusiasts an ultra-light and super adaptable package to power their boats.

The Bixpy Outboard Kit enables you to stay out longer, explore new waters, fish more, troll for hours or just get home effortlessly at the end of a long tiring day on the water, or when the weather turns on you and you need an extra push to get you back.

You can update your Bixpy PP-378 battery (version 4 with white lights), PP-768 battery, and remote with the newest firmware by using our Bixpy App. Click here to download the app in the Apple Store and click here to download the app in Google Play.

View full details

Collapsible content

Features

FEATURES

Runs for approximately 80 minutes at top speed and up to 12 hours at slower speeds

Ultralight setup (weighs just 10 lb including battery and motor)

Quick release motor can be removed with just one bolt

Warp speed feature allows you to reach max speed with a double click

Operates via wireless bluetooth remote control with 12 forward speeds and 3 reverse speeds

Waterproof and dirt-proof with corrosion-resistant components and aluminum body

Outboard Power Pack and remote control float in case of accidental slippage

Includes

INCLUDES

Bixpy Universal Versa Rudder Adapter

Wireless Remote Control

Magnetic kill switch with floating leash

Universal 100 - 240V Wall Charger

Allen key to open propeller shroud for cleaning and repairs

5ml tube of di-electric grease

Quick Start User Manual

Your choice of steering

Your choice of motor & battery kit

your choice of gudgeon

Bixpy Vinyl Decal

Specifications

Specifications

Combined weight of motor and battery: < 10 lb

Motor size: L 9.05" (230mm) x W 3.15" (80mm) x 6.32" (160mm)

Motor output: 450 watts - 33 lb of thrust

Cable length: 60" (150cm)

Depth rating: 100 ft (30 m)

Battery output: 25.2 V - 378Wh

Battery size: L 12" (304mm) x W 9" (228.6mm) x H 3.5" (88.9mm)

User Manual Download

User Manual Download

Click Here for K-1 User Manual and Safety Guide

Click Here for PP-378 V4 User Manual

Warranty

1 year warranty from date of purchase from Bixpy.com or an authorized dealer
